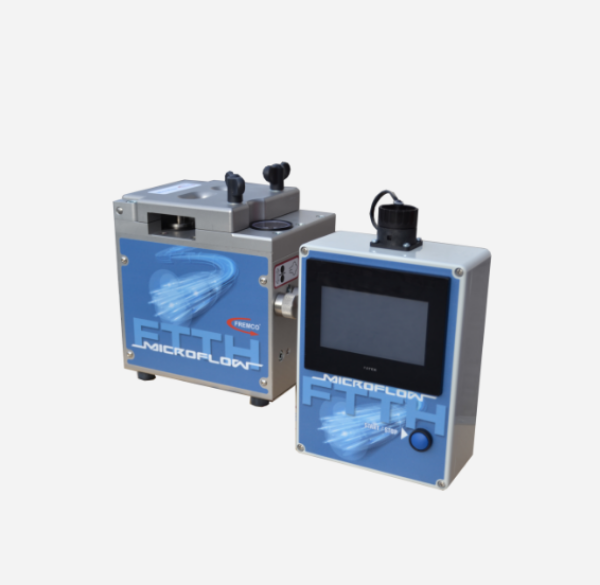

MicroFlow Touch blowing machine US CCT-101-180416003

$27,244.25

Qty:

Fully automatic fiber blowing machine that secures fast and reliable optical fiber blowing. Designed for air blown fiber and small fiber optic cables.

Fiber/Cable OD: 0.8-6.5 mm
Duct size OD: 4-16 mm
Preparation time: 5 min
Blowing distance: up to 8,202 feet

User-friendly touch display
The Microflow Touch’s control unit has a user-friendly touch display, which can be used to make a number of different adjustments.

Equipped with a unique protection technology
The unique protection technology that stops the machine if the fiber cable meets resistance. Any obstacles are registered by a sensor and the motor stops.
The machine will also stop automatically if the motor exceeds the preset maximum torque level. In both cases, the machine stops immediately so the fiber cable does not get damaged.

Present automatic stop
The control unit can be used to presetting distance counter to stop after a certain blowing distance, making it possible to work alone.
