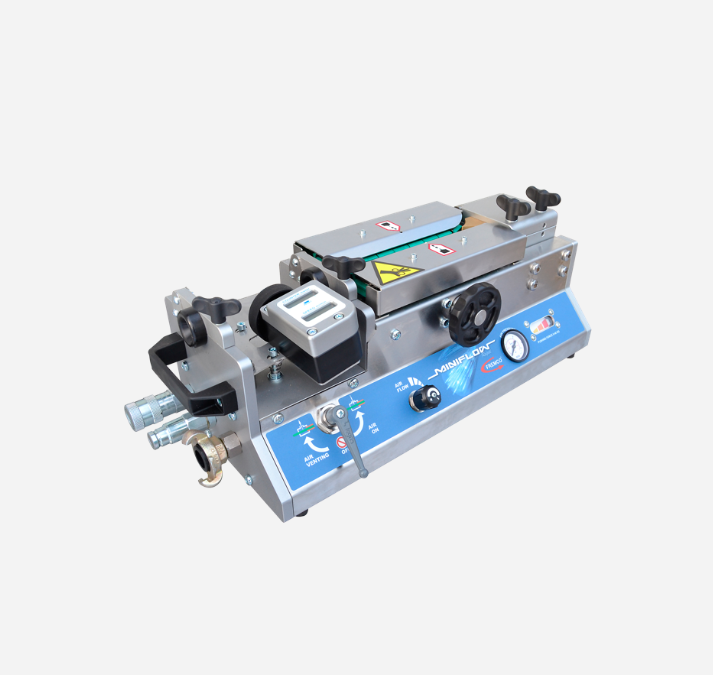

MiniFlow RAPID blowing machine for mini cables 4-12 mm CCT-101-190108010

Be the first to review this product

$24,715.75

Qty:

Hydraulic cable blowing machine with a built-in electronic counter and cable damage safety monitoring system.

Fiber/Cable OD: 3-12 mm
Duct size OD: 7-20 mm
Preparation time: 4 min
Blowing distance: up to 11,485 feet

Fast cable blowing
The machine is capable of installing fiber cable at a speed up to 100 m/min. and up to a distance of 3.5 km making it a compact and efficient cable blowing machine.

Robust and compact
The machine is constructed in stainless steel and anodized aluminium, which makes it suited for use under rugged conditions at cable blowing locations.

Safe installation
The MiniFlow RAPID has a unique monitoring system, which continuously monitors the pushing force applied on the fiber cable. This makes it easy to stop the process before any damage happens to the cable.

MANDATORY PARTS FOR MACHINE USAGE

DATA SHEET
