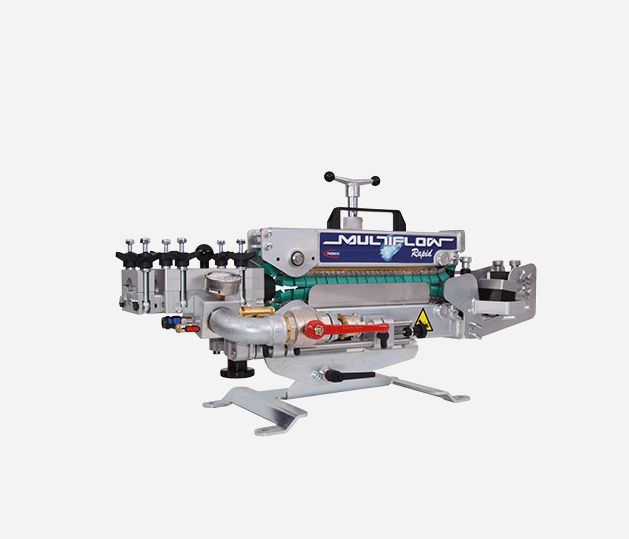

MultiFlow RAPID blowing machine (US) CCT-101-41021

Be the first to review this product

$35,100.75

Qty:

MultiFlow RAPID is designed for relining of multiple micro ducts, but it can also be operated for single cables.

Fiber/Cable OD: 5.5-32 mm
Duct size OD: 10-63 mm
Preparation time: 8-10 min
Blowing distance: up to 16,404 feet
Floating distance (with water):up to 32,808 feet

Effective for both for single cable and relining
This machine is very flexible as it can both be configurated for single cable and for relining. It can blow many different combinations of ducts and microducts.

Tool free installation
The configuration and installation can be deployed without any usage of tools. This makes every fiber blowing job even more effective as the machine can quickly be adapted to blow different sizes of fiber/cable and ducts saving you a lot of time.

Cable blowing with either air or water
It is possible to install microducts and fiber optic cables using either air or water. With water assisted cable floating, you can achieve optimal results, especially when installing large cables or blowing long distances.

MANDATORY PARTS FOR MACHINE USAGE

DATA SHEET
