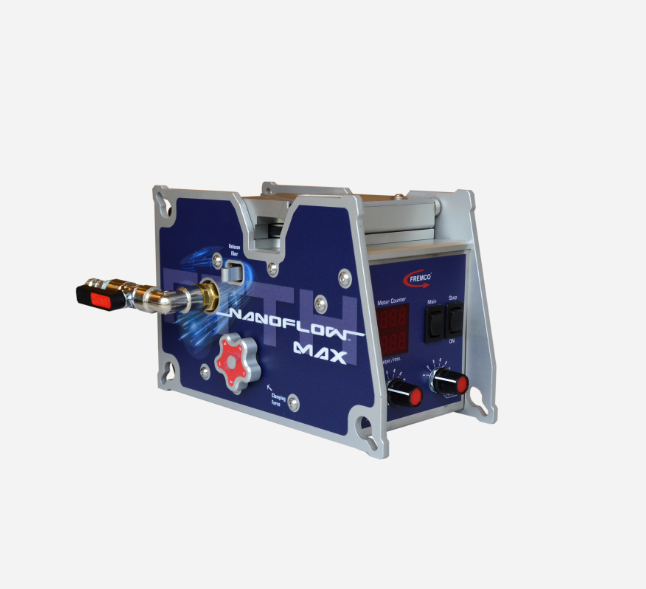

NanoFlow MAX US Kit CCT-101-190911002

$13,206.25

Qty:

Small but powerful fiber blowing machine, which can blow both blown fibre (EPFU) and micro/nano cables. Tested in accordance to IEC standards.

Fiber/Cable OD: 0.8-4.5 mm
Duct size OD: 3.0-12.7 mm
Preparation time: 3 min
Blowing distance: up to 3,940 feet

Adjustable clamping force
Secures grip around cable/fiber during installation.

Tool free installation
Easy to open and close by hand with quick load of fiber and duct. Adjustable speed and torque. Battery-powered (independent of 100V/240V).

Unique fiber protection technology – Tested in accordance to IEC standards
If the maximum recommended load on the fiber exceeds the preset torque, the machine stops the blowing process immediately without damaging the fiber.
