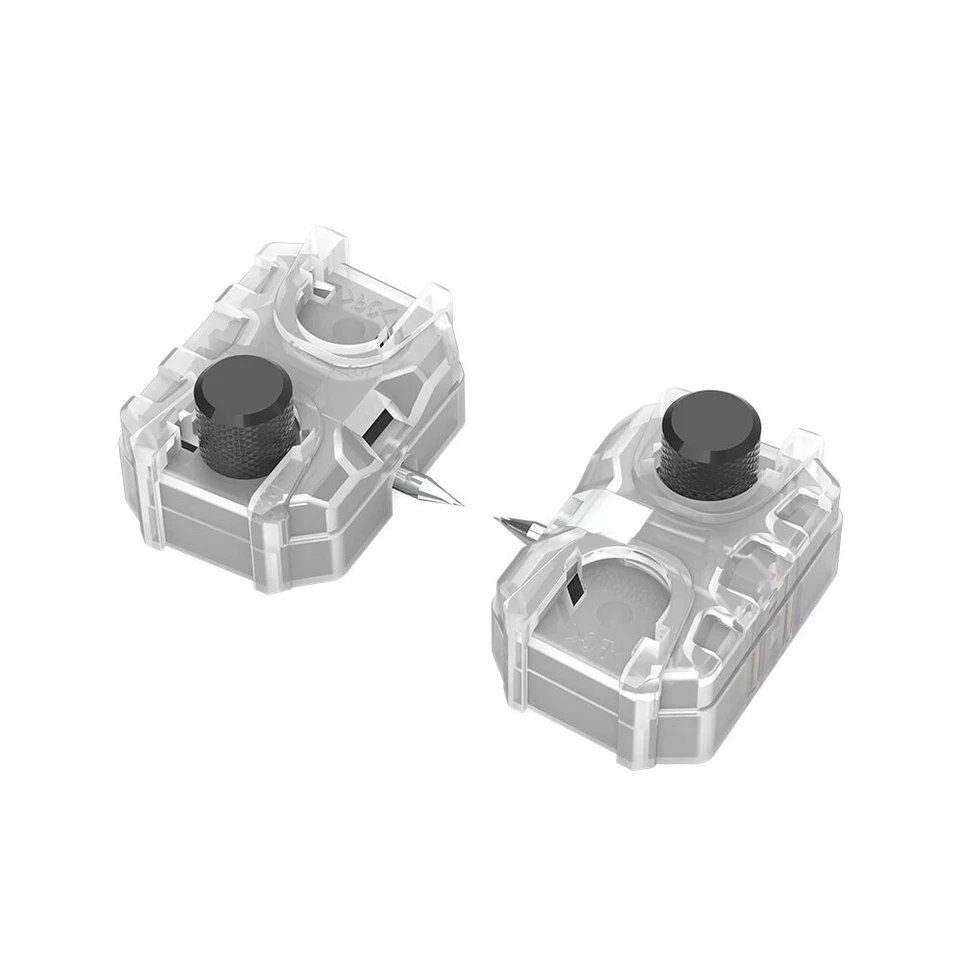

TAWAA fusion splicer electrode CCT-TED-KMS-TEK
Special Fusion Optic Fusion Splicer Electrodes Suit for Komshine EX39/FX39 Orientek T49 Splicing Machine
Product Specification ：
| Alignment method |
Core to core alignment |
| Battery capacity |
7800mAh lithium battery，each cycle supports 400 times splicing and heating |
| Fiber type |
Replaceable universal fixture, SOC fixture (optional) |
| Electrode life |
About 5000 times discharges |
| Fiber diameter |
Cladding diameter: 80-150μm，Coating diameter：100~1000μm |
| Result storage |
10000 sets of splice data, or 2000 sets of splice images |
| Cutting length |
8~16 mm |
| Display screen |
4.3 inches, high-definition LCD display |
| Return loss |
>60dB |
| Zoom in and display |
X/Y : 320 times magnification |
| Splicing loss |
SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB |
| Weight |
1.72kg without battery / 2.25kg with battery |
| Splicing time |
6 seconds(SM G652 QUICK mode) |
| Size |
158H x 132W x 157D mm (including rubber bumper) |
| Heating time |
16 Seconds |
