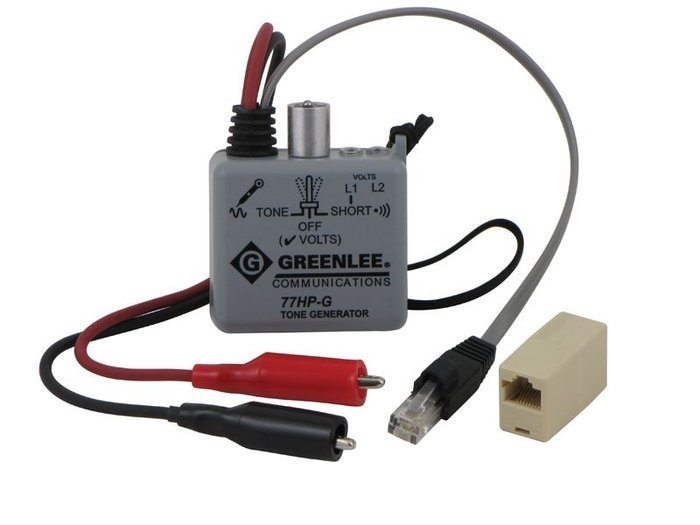

Tempo Tone Generator CCT-77HP-G

Tone Generator (77HP-G)(CLAM)

Permits technicians to identify the conductor within a bundle, at a cross-connect point or at the remote end. Can be used on twisted pair wiring (telecom, datacom, etc.), single conductors, coaxial cables, de-energized AC wiring and most other wiring.

Features of Tone Generator:

• Battery compartment
• Toggle switch
• LEDs
• Test leads
• Modular cord

Specifications of Tone Generator:

• Talk Battery (into 600 Ω): 4.6VDC
• Output Power (into 600 Ω): +10 dBm
• Resistive Short Visual Indication: <10 kΩ
• Resistive Short Audio Indication: <200 kΩ
• Output Frequency (nominal): Tone - alternating 890/960 Hz, Warbling: Slow - 1.3 Hz, Fast - 6 Hz
• Voltage Protection (into 600 Ω circuit): 52 VDC
• Battery: 9 VDC
• Battery Life: 50 hours
• Weight: 4.5oz
• Operating Temperature: 32°F to 122°F
• Storage Temperature: -58°F to 167°F
